主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 發光輕觸開關 ? R2998L ?

小型帶燈輕觸開關為集輕觸開關內置發光LED燈復合式開關，具有外觀絢麗色彩多樣化，可以符合波峰焊與回流焊，產品常規用于筆記本電腦，家電，電子電器控制按鈕功能。
防水帶燈輕觸開關R2998L

•  Pole-Position：Momentary Type,SPST
•  Contact Rating：12VDC,50mA
•  Contact Resistance：500mΩmax，5VDC;1A,
                                      by Method of Voltage DROP
•  Insulation Resistance：100MΩ min.100VDC for 1 minute
•  Dielectric Strength：Breakdown is not Allowable;
                                    250 VAC for 1 Minute
•  Operating Force：200±80gf；450±150gf
•  Operating Temperature Range：-20℃ ~70℃
•  Operating Life：100,000 cycles
•  Total Travel：0.20±0.10mm

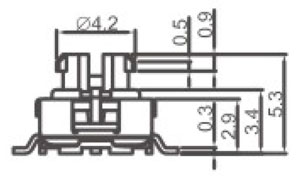

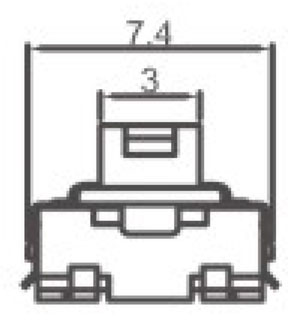

   防水帶燈輕觸開關R2998L實拍圖      防水帶燈輕觸開關R2998L結構圖      防水開關R2998L結構圖       R2998L結構圖



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Temperature Operating Life Total Travel PDF下載
R2998L-M-2-B-V 12VDC,50mA 500mΩmax，5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf；450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暫無
R2998L-H-2-Y-V 12VDC,50mA 500mΩmax，5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf；450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暫無
R2998L-AM-2-Y-V 12VDC,50mA 500mΩmax，5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf；450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暫無
R2998L-M-2-Y-V 12VDC,50mA 500mΩmax，5VDC;1A,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 200±80gf；450±150gf -20℃ ~70℃ 100,000 cycles 0.20±0.10mm 暫無
